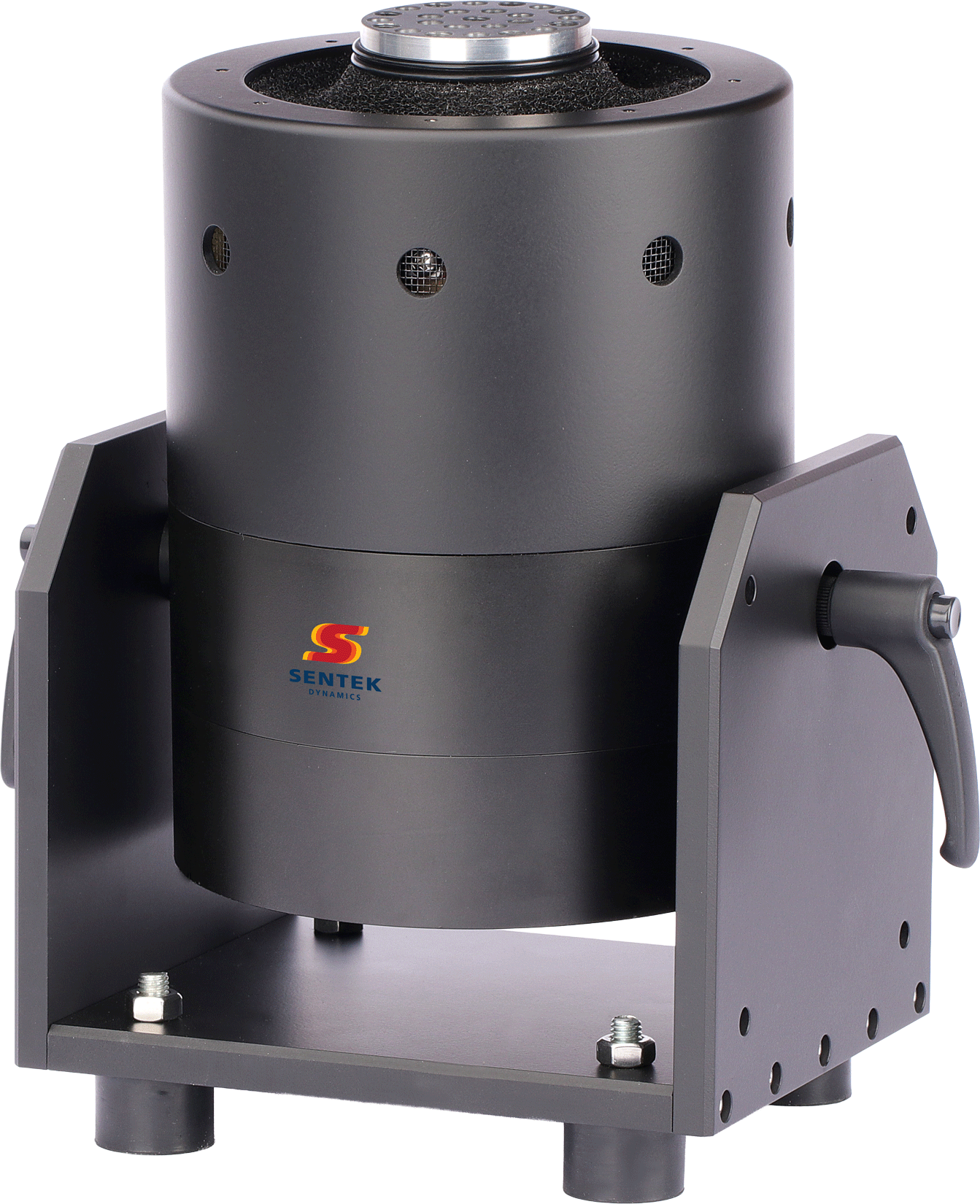

Bench Top (BT-Series) Air-Cooled Shakers
100 - 1000 N (70 - 224 lbf)
The BT Series shakers are designed for demanding vibration test applications. Typical applications included structural analysis, calibration and testing of smaller assemblies. The BT-100 through BT-400 shakers utilize light weight rare earth magnets in lieu of traditional Alnico magnets. The use of these magnets decreases the total shaker mass to a third of similar size system, making these shakers easy to handle and portable.
The line of Sentek Dynamics Bench Top shakers is based upon years of practical vibration test experience. These shakers all exhibit a high lateral stiffness, high force-to-weight ratio and are specifically designed to help ensure the best possible performance with minimum setup time.
Uses: vibration testing; mechanical impedance measurements; educational demonstrations; structural response testing; vibration transducer calibration; testing of small electronic assemblies and components.
Technical Specification of Bench Top Shaker Systems | ||||||||
---|---|---|---|---|---|---|---|---|
BT-100 | BT-200 | BT-400 | BT-1000 | |||||
Metric | US | Metric | US | Metric | US | Metric | US | |
Rated peak force Sine/ Random/Shock |
100/70 N | 22/15 lbf | 200/140 N | 44/31 lbf | 400/311 N | 99/70 lbf | 1000/650/1500 N | 224/146/337 lbf |
Frequency range | 2 - 7000 Hz | 2 - 7000 Hz | 2-7000 Hz | 2-7000 Hz | 2 - 6500 Hz | 2 - 6500 Hz | 2 - 6500 Hz | 2 - 6500 Hz |
Main resonance frequency | >6500 Hz | >6500 Hz | >6500 Hz | >6500 Hz | >5500 Hz | >5500 Hz | >4800 Hz | >4800 Hz |
Max. displacement Peak-Peak | 13 mm | 0.51 | 13 mm | 0.51 | 20 mm | 0.787 | 25.4 mm | 1 in |
Max. velocity | 1.5 m/s | 59 in/s | 1.5 m/s | 59 in/s | 1.5 m.s | 59 in/s | 1.5/1.5/2.0 m/s | 59/59/78 in/s |
Max. acceleration Sine/Random | 45/30 g | 45/30 g | 89/62 g | 89/62 g | 100/50 g | 100/50 g | 60/35/90 g | 60/35/90 g |
Suspension stiffness | 8 N/mm | 45.7 lbf/in | 8 N/mm | 45.7 lbf/in | 5 N/mm | 28.6 lbf/in | 22 N/mm | 152.6 lbf/in |
Effective moving mass | 0.23 kg | 0.507 lbs | 0.23 kg | 0.507 lbs | 0.4 kg | 0.88 lbs | 1.75 kg | 3.86 lbs |
Total mass | 12 kg | 26.4 lbs | 12 kg | 26.4 lbs | 18 kg | 39.68 lbs | 122 kg | 268.9 lbs |
Armature diameter | 60 mm | 2.36 in | 60 mm | 2.36 in | 60 mm | 2.36 | 120 mm | 4.72 in |
Blower | No | Yes | Yes | Yes | ||||
Amplifier | LA-120 | LA-500 | LA-1000 | LA-1000 w/FPS |
The mini-shaker is a small, portable permanent magnet exciter with an integral power amplifier. The design eliminates the need for a separate, inconvenient power amplifier. The excitation signal can be connected directly to the BNC connector from most vibration controllers or signal generators. The mini-shaker is perfect for frequent conveyance, and educational and research purposes in both lab and industrial environments.
Uses: Vibration testing; Mechanical impedance measurements; Educational demonstrations; Structural response testing; Vibration transducer calibration
Technical Specifications of Mini-Shaker System |
||
---|---|---|
Metric | US | |
Rated peak force Sine/Random/Shock | 20/13.3/40 | 4.5/3/9 |
Frequency range | 0.3Hz -15 kHz | 0.3Hz -15 kHz |
Main resonance frequency | 17 kHz | 17 kHz |
Max. displacement Peak-Peak | 5 mm | 0.2 in |
Max. velocity | 1.0 m/s | 39.4in/s |
Max. acceleration | ||
Bare Table | 40g | 40g |
45 grams (0.1 lb) | 21 g | 21 g |
450 grams (1 lb) | 4 g | 4 g |
900 grams (2 lbs) | 2 g | 2 g |
Suspension stiffness | 2.63 N/mm | 15 lbf/in |
Effective moving mass | 50 grams | 0.11 lb |
Total mass | 4.5 kg | 9 lbs |
Armature mounting pattern - M5 inserts | Center and 4 @ 25mm | |
Amplifier | Integral |

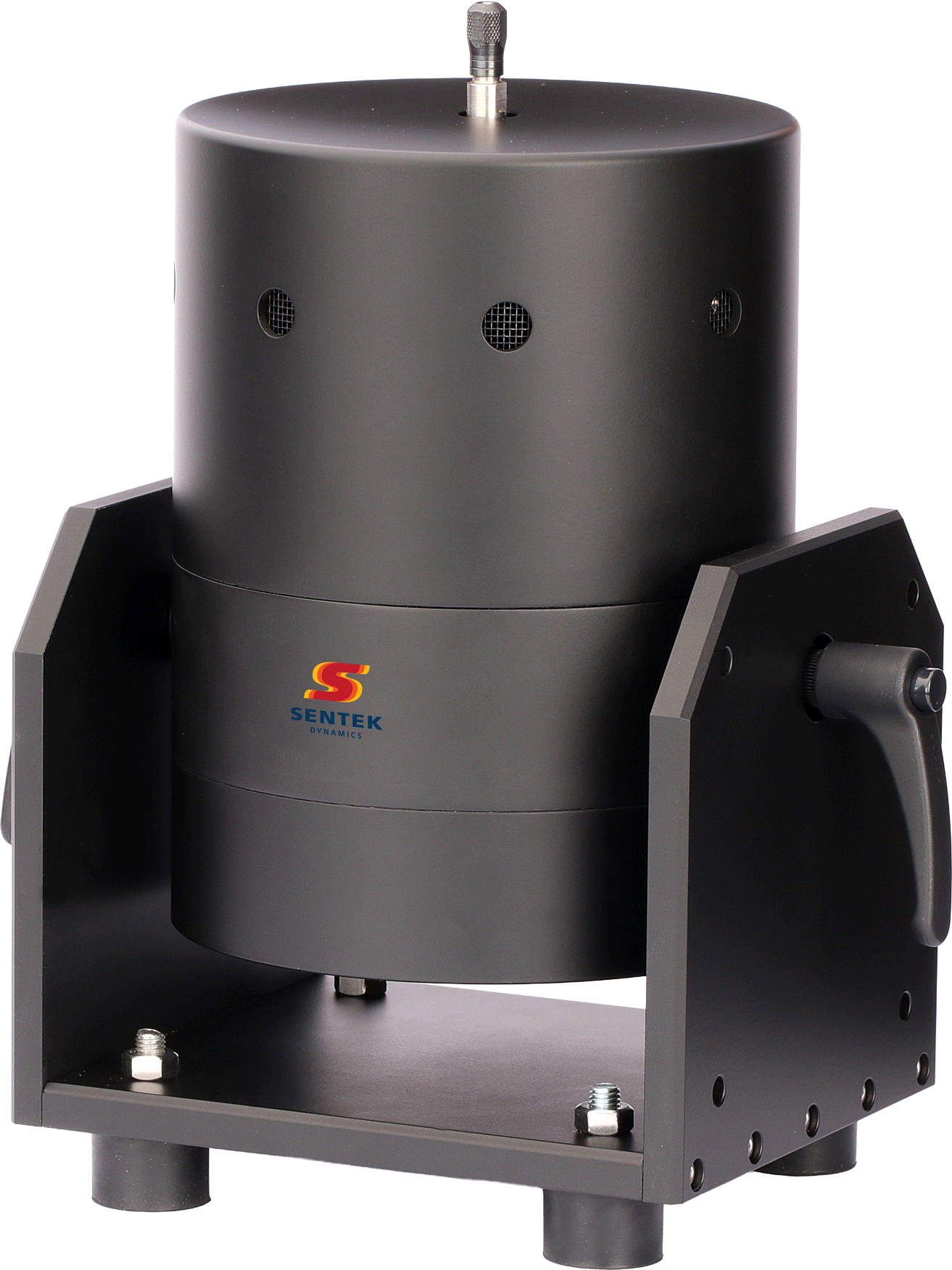

Modal Bench Top (BT-M Series) Shakers
The Modal Bench Top (BT) Series exciters are designed specifically for structural and modal analysis applications. The BT-100-M through BT-400-M shakers utilize light weight rare earth magnets in lieu of traditional Alnico magnets. The use of these magnets decreases the total shaker mass to a third of similar size system, making these shakers easy to handle and portable. The BT-100-M through BT-400-M are also available in a through hole version (MTH) with displacements up to 25.4mm or 1 inch.
The BT-1000-M is for structural and modal analysis applications of high-mass structures. The exciter provides 45 mm or 1.77 inches of displacement. This system includes electronic zero point control with electronically adjustable suspension stiffness (ZPR).
The line of Sentek Dynamics Bench Top modal exciters is based upon years of practical experience. These systems all exhibit a high lateral stiffness, high force-to-weight ratio and are specifically designed to help ensure the best possible performance with minimum setup time.
Uses: structural response testing; modal analysis
Technical Specifications of Bench Top Modal Shaker Systems | ||||||||
---|---|---|---|---|---|---|---|---|
BT-100-M | BT-200-M | BT-400-M | BT-1000-M | |||||
Metric | US | Metric | US | Metric | US | Metric | US | |
Rated peak force Sinepk/RandomRMS | 100/70 N | 22/15 lbf | 200/140 N | 44/31 lbf | 400/311 N | 99/70 lbf | 1000/650 N | 224/146 lbf pk rms pk |
Frequency range | DC - 5000 Hz | DC - 5000 Hz | DC - 5000 Hz | DC - 5000 Hz | DC - 5000 Hz | DC - 5000 Hz | 1-5000 Hz | 1-5000 Hz |
Main resonance frequency | >2680 Hz | >2680 Hz | >2680 Hz | >2680 Hz | >2450 Hz | >2450 Hz | >4000 Hz | >4000 Hz |
Max. displacement Peak-Peak | 13 mm | 0.51 | 13 mm | 0.51 | 20 mm | 0.787 | 45.0 mm | 1.77 in |
Max. velocity | 1.5 m/s | 59 in/s | 1.5 m/s | 59 in/s | 1.5 m.s | 59 in/s | 1.5/1.5/2.0 m/s | 59.05/59.05/78.7 in/s |
Suspension stiffness | 8 N/mm | 45.7 lbf/in | 8 N/mm | 45.7 lbf/in | 5 N/mm | 28.6 lbf/in | electronically adjustable | |
Effective moving mass | 0.23 kg | 0.507 lbs | 0.23 kg | 0.507 lbs | 0.4 kg | 0.88 lbs | 1.45 kg | 3.2 lbs |
Total mass | 12 kg | 26.4 lbs | 12 kg | 26.4 lbs | 18 kg | 39.68 lbs | 122 kg | 268.9 lbs |
Coupling thread | M6 | M6 | M6 | M8 | ||||
Blower | No | Yes | yes | Yes | ||||
Amplifier | LA-120 | LA-500 | LA-1000 | LA-1000 w/FPS |
Technical Specifications of Through Hole Modal Shaker Systems | ||||||
---|---|---|---|---|---|---|
BT-100-MTH | BT-200-MTH | BT-400-MTH | ||||
Metric | US | Metric | US | Metric | US | |
Rated peak force Sinepk/RandomRMS | 100/70 N | 22/15 lbf | 200/140 N | 44/31 lbf | 400/280 N | 99/63lbf |
Frequency range | DC - 5000 Hz | DC - 5000 Hz | DC - 5000 Hz | DC - 5000 Hz | DC - 5000 Hz | DC - 5000 Hz |
Main resonance frequency | >6000 Hz | >6000 Hz | >6000 Hz | >6000 Hz | 4000 Hz | 4000 Hz |
Max. displacement Peak-Peak | 25.4 mm | 1 in | 25.4 mm | 1 in | 25.4 mm | 1 in |
Max. velocity | 1.5 m/s | 59 in/s | 1.5 m/s | 59 in/s | 1.5 m.s | 59 in/s |
Suspension stiffness | 4 N/mm | 22.84 lbf/in | 4 N/mm | 22.84 | 4 N/mm | 22.84 lbf/in |
Effective moving mass | 0.23 kg | 0.507 lbs | 0.23 kg | 0.507 lbs | 0.4 kg | 0.88 lbs |
Total mass | 21 kg | 46.3 lbs | 21 kg | 46.3 lbs | 21 kg | 46.3 lbs |
Coupling thread | M6 | M6 | M6 | |||
Blower | No | Yes | yes | |||
Amplifier | LA-120 | LA-500 | LA-1000 |
