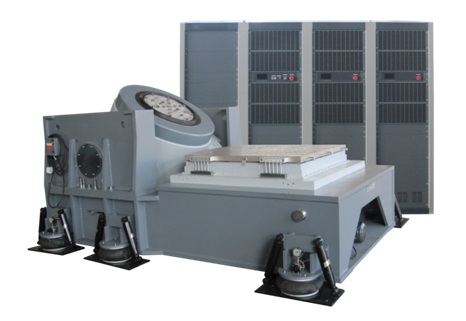

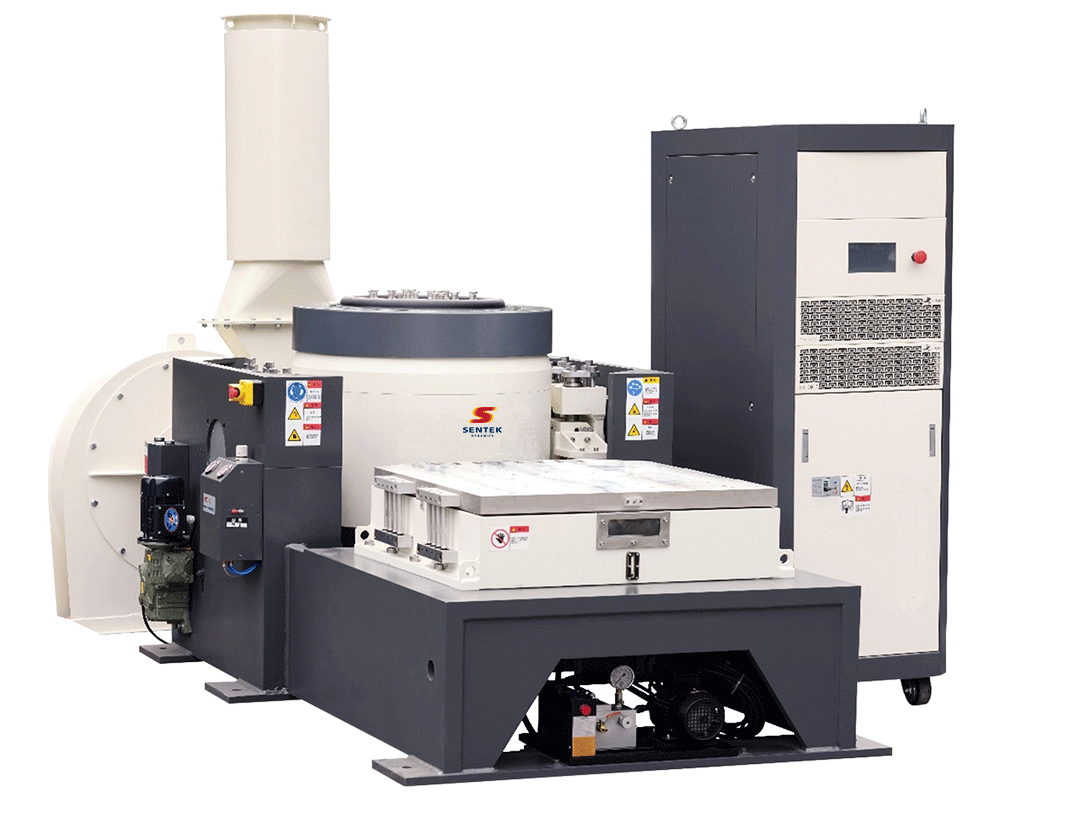

Extra High-Force (E-Series) Water-Cooled Shakers*
200 - 400 kN (44,000 - 88,000 lbf)
The E-Series water-cooled electro-dynamic shakers are designed for the vibration testing of large-sized payloads up to 6000 kg (13,200 lb).
KEY APPLICATIONS:
Aerospace Vibration Testing
Automotive Vibration Testing
Military Vibration Testing
FEATURES:
Armature diameters from 640 mm (25.2 in) to 860 mm (33.9 in)
Rugged trunnion design
Automatic static and dynamic armature centering
Motorized gearbox for shaker rotation
Useful vibration control frequency range from 5 to 2200 Hz
Some systems available with 76 mm (3 in) displacement
*Systems tested & assembled in the USA coming soon. Check here for availability.
| System Performance |
E20064A | E30076A | E40086A |
|---|---|---|---|
| Sine Force Peak kN (lbf) | 196 (44,000) | 294 (66,000) | 392 (88,000) |
| Random Force rms kN (lbf) | 196 (44,000) | 205.8 (46,266) | 274 (61,598) |
| Shock Force (6 ms) kN (lbf) | 392 (88,000) | 588 (132,000) | 784.00 (176,000) |
| Frequency Range (Hz) | 5 - 2200 | 5 - 1900 | 5 - 1700 |
| Continuous Displacement mm (in) | 51 (2.0) | 51 (2.0) | 51 (2.0) |
| Shock Displacement mm (in) | 51 (2.0) | 51 (2.0) | 51 (2.0) |
| Max Velocity m/s (in/s) | 2.0 (78.7) | 1.8 (70.9) | 1.8 (70.9) |
| Max Acceleration Sine Peak m/s2 (g) | 980 (100) | 980 (100) | 980 (100) |
| Armature Diameter mm (in) | 640 (25.2) | 760 (29.9) | 860 (33.9) |
| Effective Armature Mass kg (lb) | 160 (352) | 230 (506) | 350 (770) |
| Max Static Payload kg (lb) | 2000 (4400) | 3200 (7040) | 4000 (8,800) |
