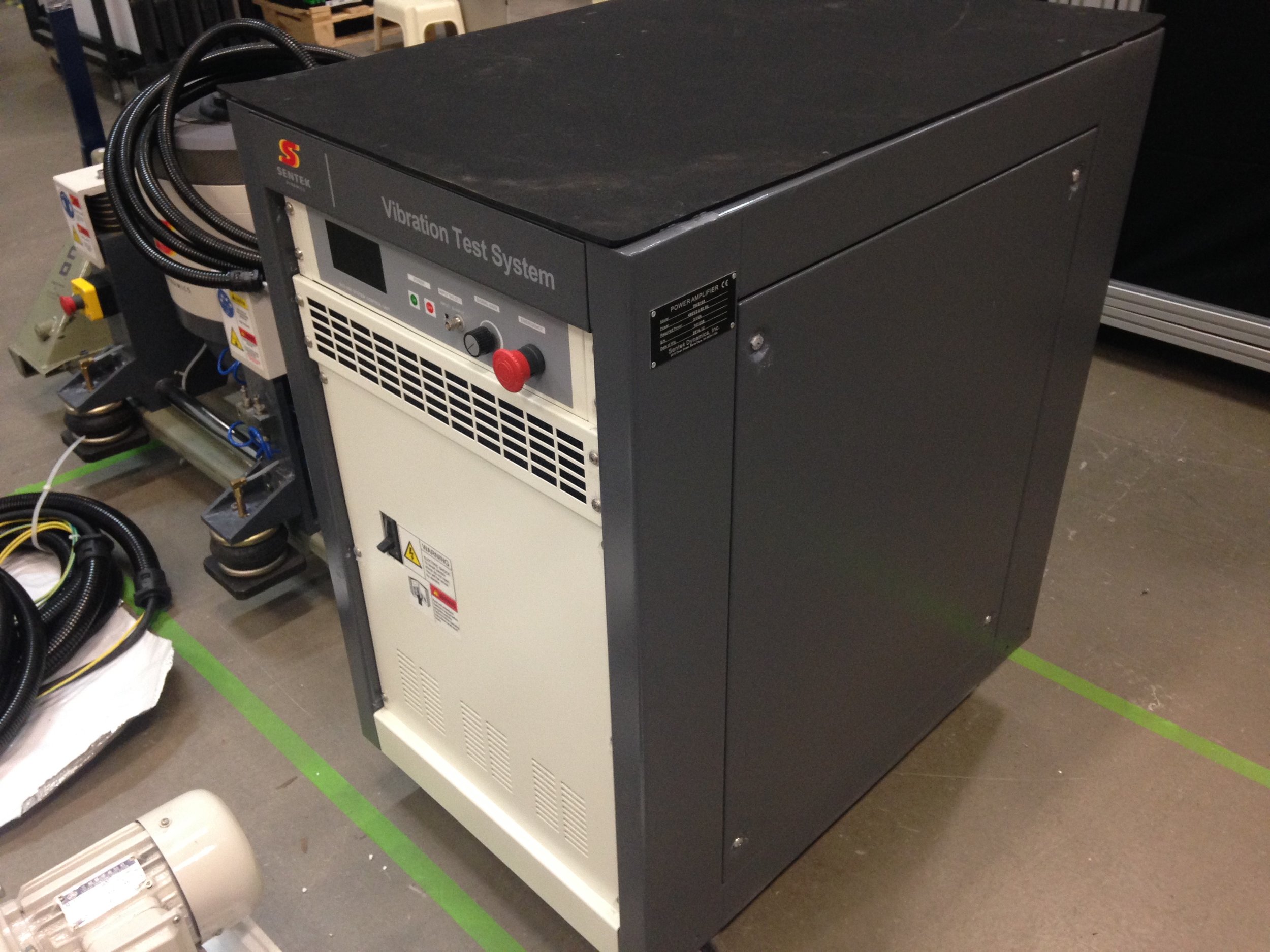

Sentek Dynamics’ PA Series replacement power amplifiers are available for most other vibration test equipment manufacturers obsolete, inefficient power amplifiers. The PA Series amplifiers are nearly twice as efficient as older air and water-cooled amplifiers and provide a significant savings in power consumption and electrical bills. So significant, in fact, that the savings can offset the cost of a replacement amplifier in a very short period.
Designed with the latest, field-proven MOSFET technology, the 12 kVA power-modules consist of two independent 6 kVA sub-modules to ensure continued operation in the event of a sub-module failure. Design features include: Heatsinks and fans to allow safe, continuous operation at high output for extended periods of time: interchangeable, modular sub-modules for easy replacement if required; and built-in operation and fault LED lights to provide a quick source to identify failed components
Features / Advantages
High conversion efficiency > 91 percent
Low harmonic distortion < 0.5% at typical testing frequencies
Designed for continuous use over extended periods of operation

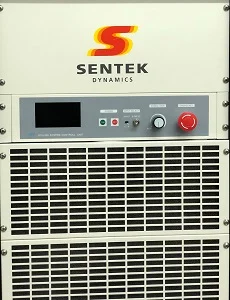

LCD display for status and diagnostic messages
Space saving low-profile cabinet for amplifiers with outputs from 1 to 6 kVA
Selectable BNC connection on front panel and rear cabinet for drive input
Meets or exceeds international requirements for safety and EMC
Emergency stop (E-stop) on front panel
Optional remote-control panel (RCP) that duplicates functionality of amplifier front panel

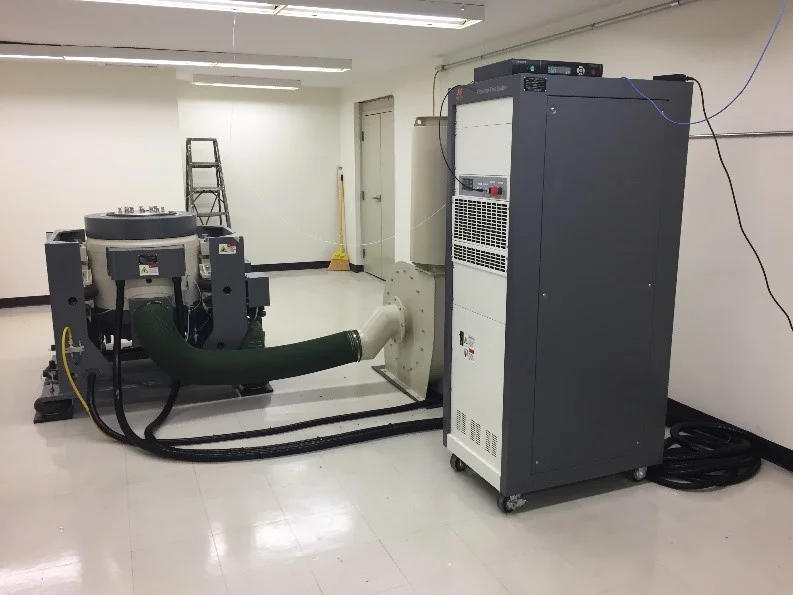

Typical Replacement Amplifier Applications:
| Shaker | System Type | Amplifier Power Rating | Number of Cabinets | |
|---|---|---|---|---|
| Make | Model | |||
| LDS | V640 | Air-cooled | 2 kVA | 1 |
| LDS | V805 | Air-cooled | 18 kVA | 1 |
| LDS | V954 | Water-cooled | 60 kVA | 1 |
| LDS | V964 | Water-cooled | 120 kVA | 3 |
| Ling Electronics | 335 | Air-cooled | 75 kVA | 2 |
| Ling Electronics | A335 | Water-cooled | 105 kVA | 3 |
| Ling Electronics | B335 | Water-cooled | 120 kVA | 3 |
| Ling Electronics | A395 | Air-cooled | 30 kVA | 1 |
| Ling Electronics | B395 | Water-cooled | 105 kVA | 3 |
| Ling Electronics | 4022 | Water-cooled | 200 kVA | 4 |
| MB Dynamics | C50 | Air-cooled | 30 kVA | 1 |
| Thermotron | 939 | Air-cooled | 40 kVA | 1 |
| Unholtz Dickie | T1000 | Water/Air-cooled | 120 kVA | 3 |
| Unholtz Dickie | T4000 | Water/Air-cooled | 300 kVA | 5 |
