Simultaneous Three-Axis (MA-Series) Shakers*

10 - 60 kN (2200 - 13,200 lbf)

multi axis vibration test system

Real-world vibration happens in all directions and thus it is necessary to test the DUT in all three directions simultaneously. The MA Series of three-axis shakers is designed and manufactured for this vibration testing purpose.

Key Applications:

  • Testing in accordance with MIL-STD-810G Method 527 requirements

  • Testing in accordance with IEEE-344 multi-axis vibration testing

  • Vibration qualification testing for aerospace/military components and systems

  • Automotive NVH/BSR and component testing

 Features/Advantages

  • Simulates real-world vibration requirements

  • Reveals different DUT response dynamics under simultaneous multi-axis excitation than possible during single-axis vibration testing

  • Identifies failures which could not happen with single-axis vibration testing

  • Reduces testing time by two-thirds for significant cost savings over single-axis vibration testing in each axis

  • Can be integrated with Sentek Dynamics’ THV Series environmental test chambers

Multiple-Input Multiple-Output (MIMO) Control

Sentek Dynamics’ MA Series simultaneous 3-axis systems use the Crystal Instruments’ Spider System vibration controller for advanced MIMO vibration test control.  The Spider System recreates multiple degree-of-freedom vibration environments in the testing laboratory and provides all required control types including MIMO Random, MIMO Sine, MIMO TWR, and more. For more information regarding the Spider System see the Vibration Controllers section or contact the Sentek Dynamics’ sales office.

*Systems tested & assembled in the USA coming soon. Check here for availability.

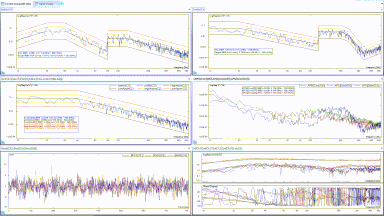

MIMO Random Vibration Testing

MIMO Random Control

MIMO Shock Vibration Testing

MIMO Shock

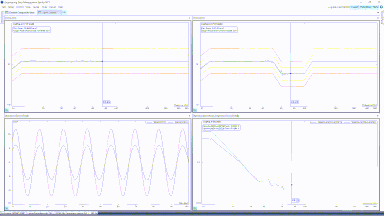

MIMO Sine Vibration Testing

MIMO Sine Control

MA Series - Simultaneous 3-Axis Shakers
Air-cooled 9.8 - 58.8 kN (2203 - 13,219 lbf)
System Performance MA-1000-4H MA-2000-4H MA-3000-4H MA-5000-5H MA-6000-5H
Sine Force Peak per Axis kN (lbf) 9.8 (2203) 19.6 (4406) 29.4 (6609) 49 (11,016)
 58.8 (13,219)
Random Force per Axis kN (lbf) 6.9 (1551) 13.7 (3080) 20.6 (4631) 34.3 (7711) 41.2 (9262)
Shock Force Peak per Axis kN (lbf) 14.7 (3305) 29.4 (6609) 44.1 (9914) 73.5 (16,523) 88.2 (19,828)
Max Working Frequency (Hz) 2000 2000 2000 2000 2000
Max Acceleration Sine Peak m/s² (g) 68.6 (7) 147 (15) 176.4 (18) 245 (25) 294 (30)
Max Velocity m/s (in/sec) 1 (39.6) 1.1 (43.2) 1.2 (46.8) 1.2 (46.8) 1.2 (46.8)
Max Displacement mm (in) 51 (2) 51 (2) 51 (2) 25 (1) 25 (1)
Max Static Payload kg (lb) 70 (154) 100 (220) 150 (330) 500 (1100) 500 (1100)
Table Size mm (in) 400 (15.8) 400 (15.8) 400 (15.8) 500 (19.7) 500 (19.7)

Note: Other working table sizes are available. Please contact the Sentek Dynamics’ sales office for more information.
